Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Each SUBSWITCH But Can Be Operated Using Power Window Main Switch): Notes

Description  Door glass other than driver's door cannot be operated using subswitches but can be operated using power window main switch
Possible Causes
  • Power window subswitch malfunction
  • Malfunction in power window subswitch power supply circuit
    • Short to ground in wiring harness between IG1 relay terminal C and power window subswitch terminal C
    • Open circuit in wiring harness between IG1 relay terminal C and power window subswitch terminal C
  • Connector poor contact or terminal damage
  • Customer mis-operation or misunderstanding

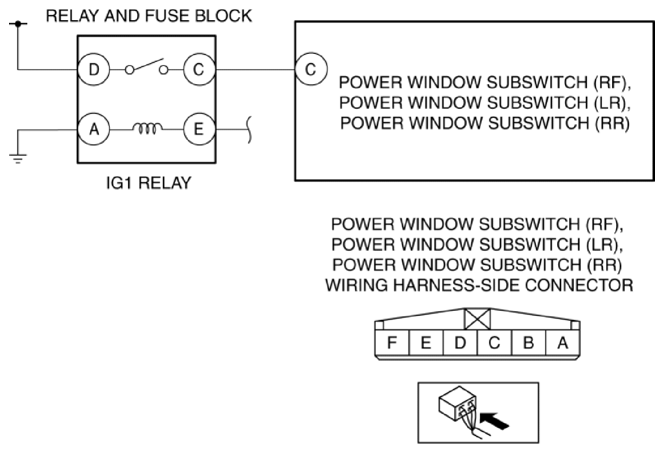

G10949192
