Symptom Troubleshooting - Power Window System
›
Driver-Side Door Glass Can Be Operated Manually But Cannot Be Operated Automatically
›
Inspection Using an Oscilloscope
Inspection Using an Oscilloscope

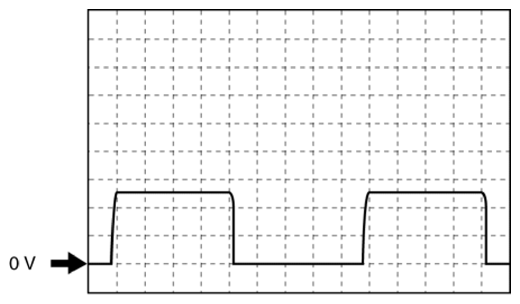

Fig 1: Power Window Main Switch Voltage Graph (Inspection Using Oscilloscope)
Courtesy of MAZDA MOTORS CORP.
Power window main switch: 2D, 2F (+) ↔ ground (-)
Power window motor: B, C (+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
