Power Window System Wiring Diagram

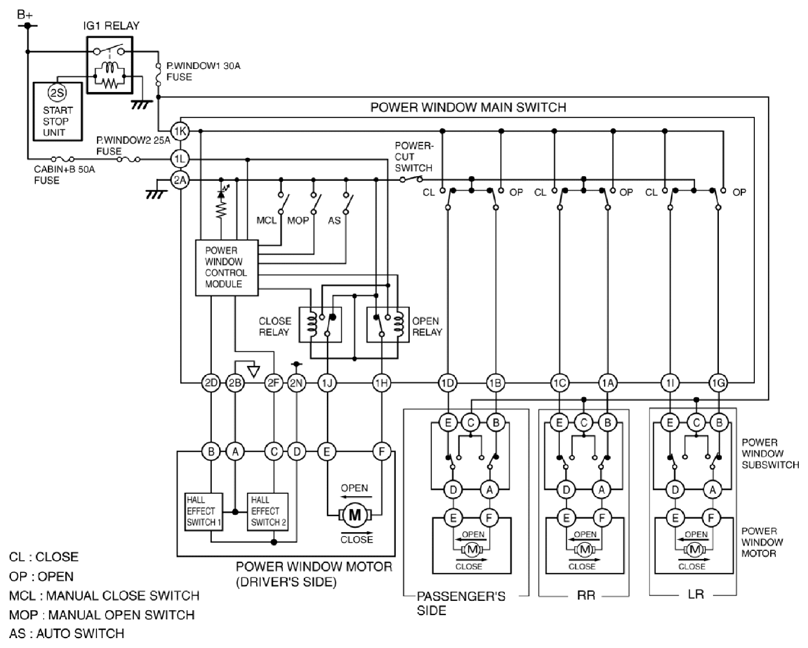

Fig 1: Power Window System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

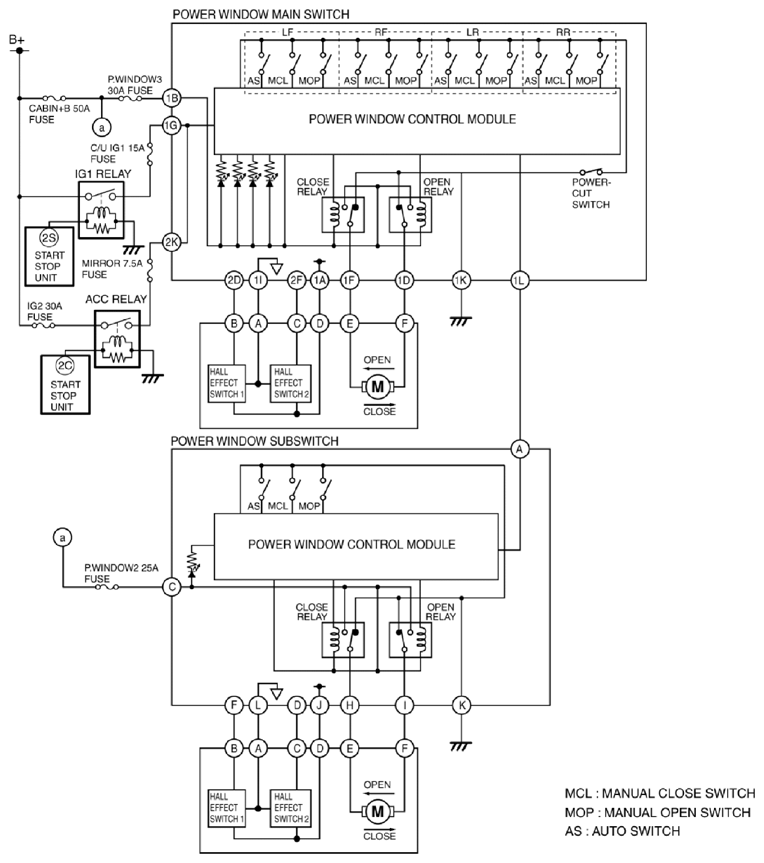

Fig 2: Power Window System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
