Connector Disconnection Note

  1. Remove the fasteners.

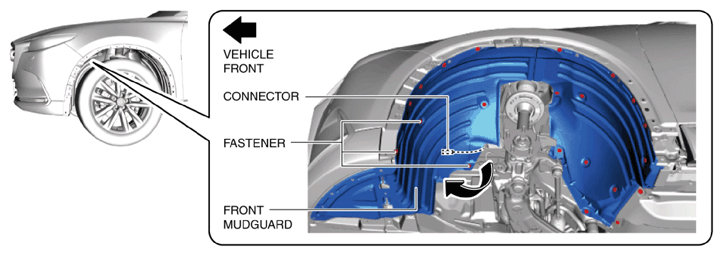

    Fig 1: Peeling Back Front Mudguard
    G10947795Courtesy of MAZDA MOTORS CORP.
  2. Peel back the front mudguard and disconnect the connector.
