Battery Clamp Installation Note

  1. Install the battery clamp as shown in the figure.

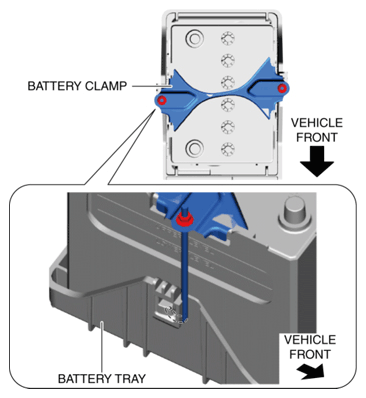

    Fig 1: Identifying Battery Tray And Clamp
    G10946998Courtesy of MAZDA MOTORS CORP.
