Starting System Location Index

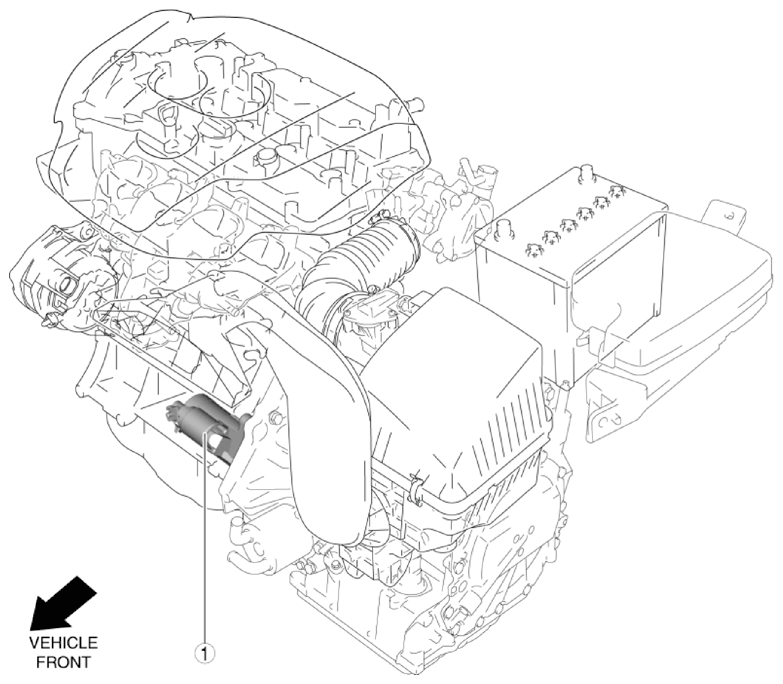

Fig 1: Starting System Location (SKYACTIV-G 2.5T)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Starter (See STARTER REMOVAL/INSTALLATION .) (See STARTER INSPECTION .) (See STARTER DISASSEMBLY/ASSEMBLY .)
