Catch Tank Inspection

Plug the purge solenoid valve side into the catch tank.

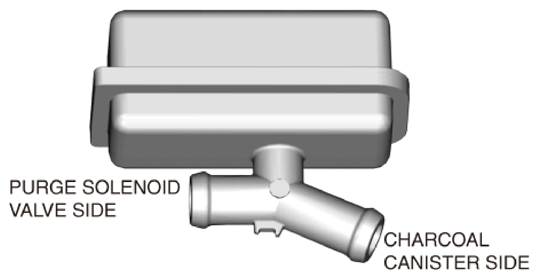

Fig 1: Identifying Purge Solenoid Valve Side
Courtesy of MAZDA MOTORS CORP.
Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
- If there is air leakage, replace the catch tank. (Refer to PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
