EGR Pipe Removal/Installation: Notes

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Drain the engine coolant. (Refer to ENGINE COOLANT REPLACEMENT .)
Remove the EGR cooler. (Refer to EGR COOLER REMOVAL/INSTALLATION .)
Remove the air cleaner. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the bolts shown in the figure and set the water pipe aside.

Fig 1: Identifying Water Pipe Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

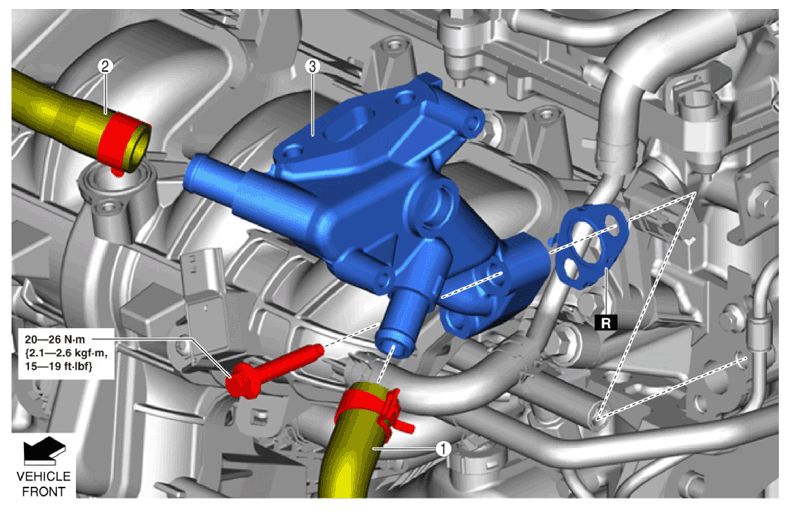

Remove in the order indicated in the table.

Fig 2: Water Hose Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Water hose No. 1 (See Water Hose No. 1 Installation Note .
2	Water hose No. 2 (See Water Hose No. 2 Installation Note .
3	EGR pipe
