PID/DATA Monitor Inspection (A/F Sensor)

Connect the M-MDS to the DLC-2.
Start the engine and warm it up completely.
Access the following PIDs using the M-MDS . (Refer to ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)] .)
- VSS (Vehicle speed)
- RPM (Engine speed)
- O2S11 (A/F sensor output current)
Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3, 000 rpm or more .
Verify that the A/F sensor output current (PID: O2S11) is 0.25 mA or more while decelerating as shown in the figure.

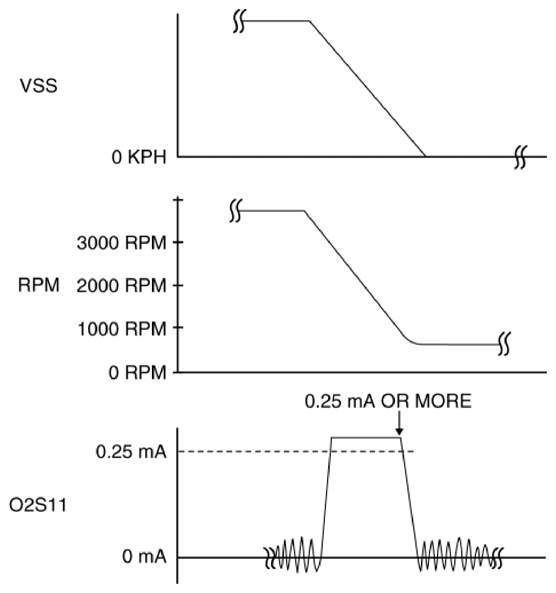

Fig 1: A/F Sensor Output Current Graph
Courtesy of MAZDA MOTORS CORP.
- If not as verified, replace the A/F sensor. (Refer to AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
