Back-up Ring Installation Note

Install the back-up ring, making sure it is installed in the right direction.

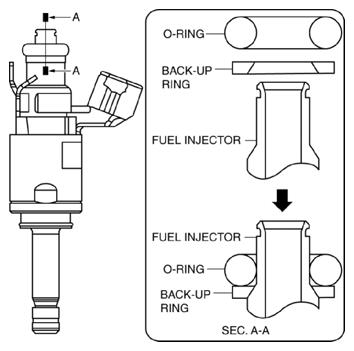

Fig 1: Installing Back-Up Ring
Courtesy of MAZDA
After installing the back-up ring, verify that it is installed correctly.

Fig 2: Identifying OK And NG Back-Up Ring Installation
Courtesy of MAZDA
