Teflon Seal Removal Note

NOTE:
  • When stretching the Teflon seal, do not damage the fuel injector with the tool.

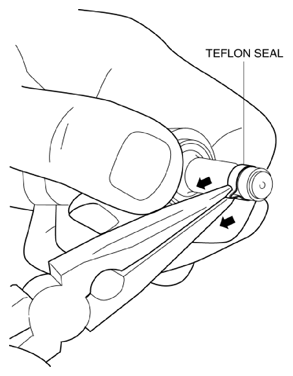

  1. Stretch the Teflon seal as shown in the figure.
    Fig 1: Stretching Teflon Seal
    G10946873Courtesy of MAZDA

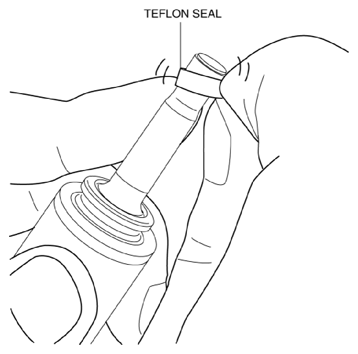

  2. Remove the Teflon seal as shown in the figure.
    Fig 2: Removing Teflon Seal
    G10946874Courtesy of MAZDA
