Protector Removal Note

  1. Remove the clip from the protector.
    Fig 1: Identifying Protector Clip
    G10946860Courtesy of MAZDA
  2. Remove the ground cable from the protector.

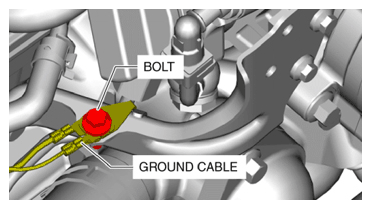

    Fig 2: Identifying Ground Cable Bolt
    G10946861Courtesy of MAZDA
  3. Remove the protector.
