Ignition coil/ion sensor Removal Note

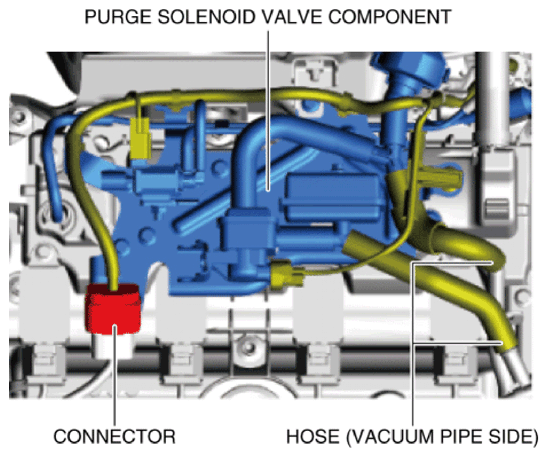

Disconnect the connector and hoses shown in the figure.

Fig 1: Disconnecting Connector And Hoses
Courtesy of MAZDA MOTORS CORP.

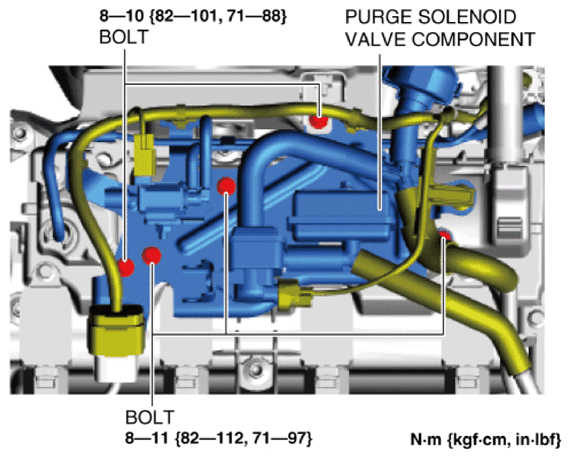

Remove the bolts shown in the figure.

Fig 2: Removing Bolts
Courtesy of MAZDA MOTORS CORP.

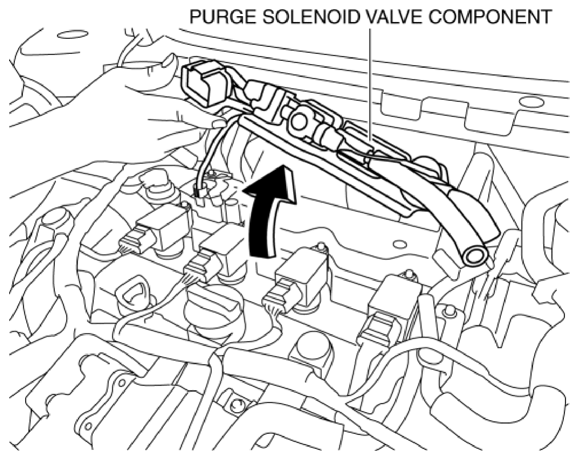

Set the purge solenoid valve component aside as shown in the figure.

Fig 3: Setting Purge Solenoid Valve Component
Courtesy of MAZDA MOTORS CORP.
Remove the ignition coil/ion sensors.
