DTC U0074-00: Can System Communication Error: Notes

DTC U0074:00 CAN system communication error (local CAN between PCM and TCM)
Detection Condition
  • Malfunction in CAN bus communication line.

Diagnostic Support Note

  • This is a continuous monitor (other).
  • The check engine light does not illuminate.
  • FREEZE FRAME DATA is not available.
  • Snapshot data is available.
  • DTC is stored in the PCM memory.
Fail-Safe Function  Not applicable
Possible Cause

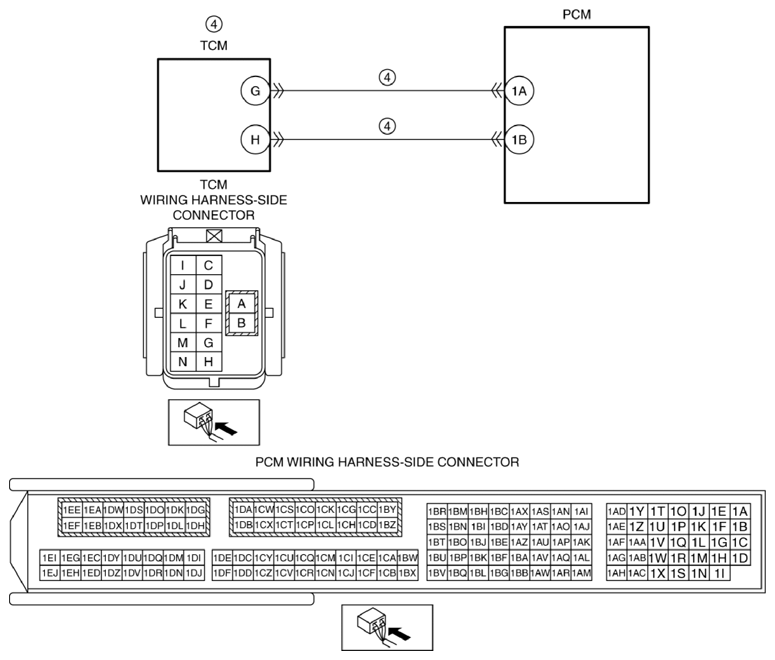

  • CAN communication line malfunction between PCM and TCM (local CAN between PCM and TCM)
    • TCM terminal G-PCM terminal 1A
    • TCM terminal H-PCM terminal 1B
  • TCM DTC is stored.
  • PCM malfunction
  • TCM malfunction
G10946269
