DTC U0323-00: Instrument Cluster Error: Notes

DTC U0323:00	Instrument cluster error
Detection Condition	When any of the following conditions is met: CAN communication line malfunction between instrument cluster and PCM Instrument cluster internal malfunction Diagnostic Support Note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
Fail-Safe Function	Not applicable

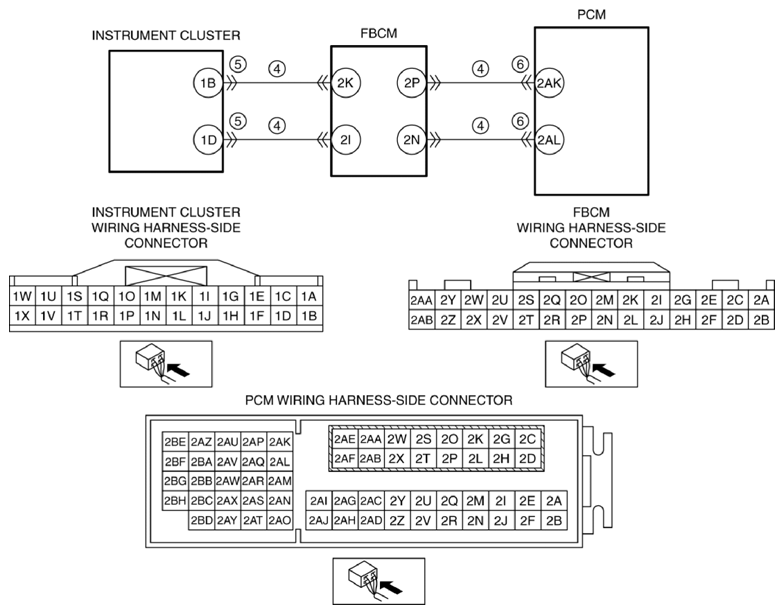

Possible Cause	CAN drive error (instrument cluster or PCM) CAN communication line malfunction between instrument cluster and PCM Instrument cluster terminal 1B-Front body control module (FBCM) terminal 2K Instrument cluster terminal 1D-Front body control module (FBCM) terminal 2I Front body control module (FBCM) terminal 2P-PCM terminal 2AK Front body control module (FBCM) terminal 2N-PCM terminal 2AL Instrument cluster connector or terminals malfunction PCM connector or terminals malfunction Instrument cluster malfunction PCM malfunction
