Publication date: 2018-10-16Reference number: SA-045/18
SKYACTIV TERMINAL TEST KIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): SA-045/18, Date of Issue:
October 16, 2018
| MAZDA: | 2012-2018 Mazda3 (SKYACTIV); 2016-2019 MX-5; 2013-2019 CX-5; 2014-2018 Mazda6; 2016-2019 CX-3; 2016-2019 CX-9 |
BULLETIN NOTES
APPLICABLE MODEL(S)/VINS
APPLICABLE MODEL(S)/VINS
| 2012-2018 Mazda3 (SKYACTIV) | 2016-2019 MX-5 | 2013-2019 CX-5 |
| 2014-2018 Mazda6 | 2016-2019 CX-3 | 2016-2019 CX-9 |
DESCRIPTION
For improvement of electrical diagnosis, the SKYACTIV® Wiring Terminal Test Kits has been delivered all the dealers. The terminal test kit enables you:
- To check pin fit drag of all terminals used in SKYACTIV® vehicles and compare suspect terminal drag with a good know terminal.
- To measure the voltage/resistance avoiding any terminal damage. KIT ITEMS
| KIT ITEMS |
|---|
| TEST LEADS |
| 48" PATCH CORD, WHITE |
| TEST LAMP |
| TEST PROBE |
| LARGE ALLIGATOR CLIP |
| FUSED JUMPER |
| CASE |
CAUTION:
- Terminals may be damaged if the kit is not used or used improperly, which could then cause other unexpected problems.
- Test lead end size and metal type varies per SERIES. If the wrong SERIES is selected, vehicle wiring harness damage may occur. There are some SERIES that are the same size, but use different metals. Inserting wrong metal type may peel off the terminal plating.
Example: [F] black wire color and (no number) means tin, [F-1] yellow wire color and (-1) means gold, and [F-2] blue wire color and (-2) means silver].

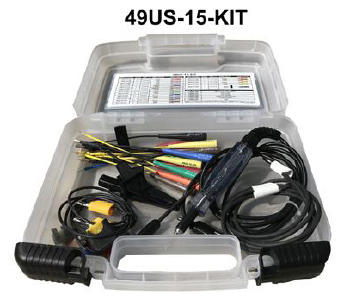

| 49US-15-KIT | |||||
|---|---|---|---|---|---|
| SERIES | PART NUMBER | SIZE (mm) | METAL TYPE | WIRE COLOR | BOOT COLOR |
| F-1 | 49US-15-061 | 1.2 X 0.63 | GOLD | ||
| YELLOW | RED | ||||
| F-2 | 49US-15-062 | 1.2 X 0.63 | SILVER | ||
| BLUE | RED | ||||
| F | 49US-15-063 | 1.2 X 0.63 | TIN | ||
| BLACK | RED | ||||
| I | 49US-15-093 | 4.8 X 0.8 | TIN | ||
| BLACK | LIGHT BLUE | ||||
| K | 49US-15-113 | 7.8 X 0.8 | TIN | ||
| BLACK | GREY | ||||
| L | 49US-15-123 | 9.5 X 1.2 | TIN | ||
| BLACK | PINK | ||||
| N-1 | 49US-15-141 | 2.3 X 0.64 | GOLD | ||
| YELLOW | GREEN | ||||
| N | 49US-15-143 | 2.3 X 0.64 | TIN | ||
| BLACK | GREEN | ||||
| P-1 | 49US-15-161 | 2.8 X 0.6 | GOLD | ||
| YELLOW | BLUE | ||||
| P | 49US-15-163 | 2.8 X 0.6 | TIN | ||
| BLACK | BLUE | ||||
| Q-1 | 49US-15-171 | 0.63 X 0.63 | GOLD | ||
| YELLOW | BROWN | ||||
| Q | 49US-15-173 | 0.63 X 0.63 | TIN | ||
| BLACK | BROWN | ||||
| R-1 | 49US-15-181 | 1.5 X 0.6 | GOLD | ||
| YELLOW | ORANGE | ||||
| R | 49US-15-183 | 1.5 X 0.6 | TIN | ||
| BLACK | ORANGE | ||||
| S-1 | 49US-15-191 | 1.8 X 0.64 | GOLD | ||
| YELLOW | YELLOW | ||||
| S | 49US-15-193 | 1.8 X 0.64 | TIN | ||
| BLACK | YELLOW | ||||
| T | 49US-15-203 | 0.5 X 0.4 | TIN | ||
| BLACK | BLACK | ||||
|
NOTE:

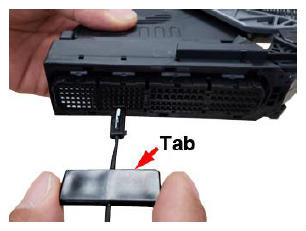

Insert with index tab parrallel with the connector
|
|||||

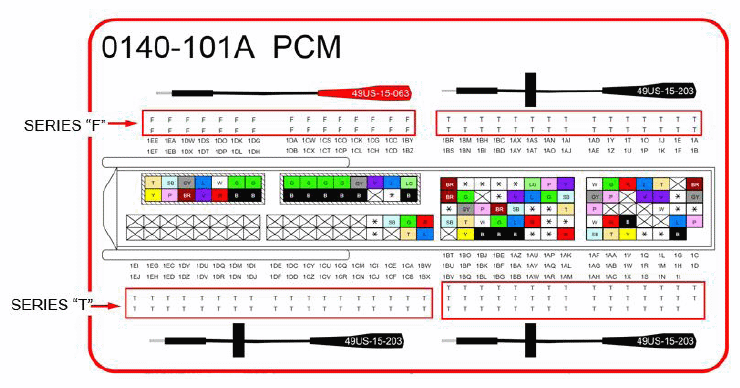

Example of usage below:
Refer to SKYACTIV® Wiring Terminal Test Kit WBT for more details.
