Dynamic Damper Installation Note

Install the dynamic damper to position A shown in the figure.

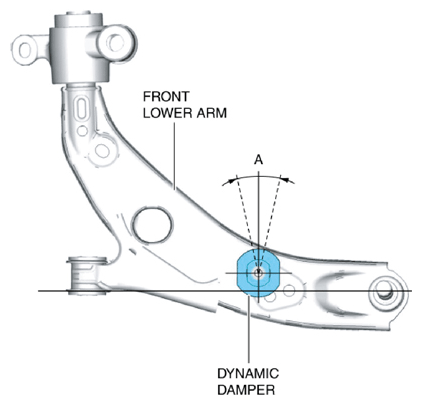

Fig 1: Identifying Dynamic Damper Angle
Courtesy of MAZDA
- A: 0° ±5°
Tighten the bolt to the specified torque.
Tightening torque
- 18-24 N.m {1.9-2.4 kgf.m, 14-17 ft.lbf}
