Drive Plate Installation Bolts Removal Note

  1. Set the SST  against the drive plate.

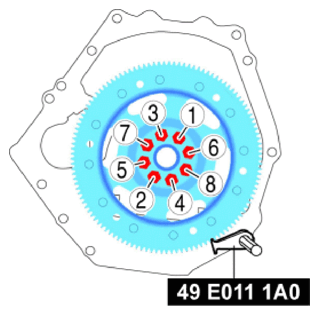

    Fig 1: Setting SST Against Drive Plate
    G10948020Courtesy of MAZDA
  2. Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the figure, then remove the bolts and the drive plate.
