Symptom Troubleshooting - Automatic Transaxle
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

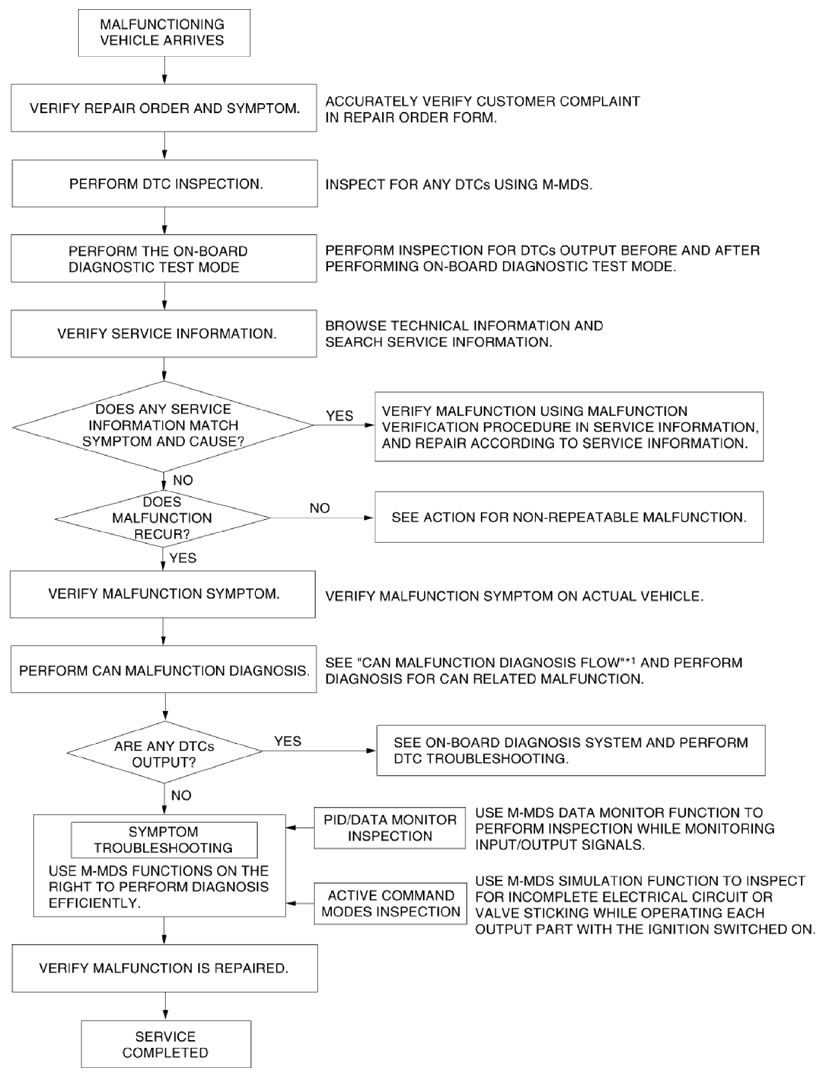

Fig 1: Automatic Transaxle Control System Troubleshooting Chart (GW6A-EL And GW6AX-EL)
Courtesy of MAZDA
Courtesy of MAZDA
