Transfer Bracket Installation Note

Install the transfer bracket to the transfer and temporarily tighten bolts A and B.

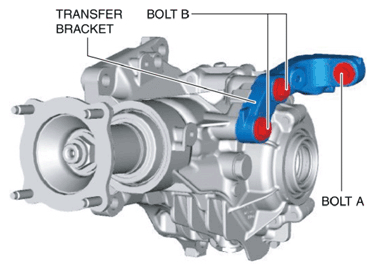

Fig 1: Identifying Transfer Bracket And Bolts
Courtesy of MACK TRUCKS, INC.
Completely tighten bolts A and B in order.
Tightening torque
- 38-52 N.m {3.9-5.3kgf.m, 29-38 ft.lbf}
