Indicator Removal Note

  1. Detach tabs shown in the figure and remove the indicator.

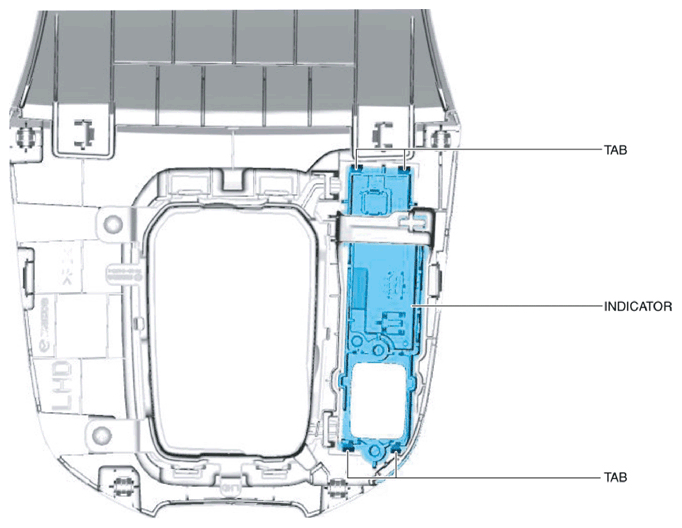

    Fig 1: Identifying Indicator And Tab
    G10948135Courtesy of MAZDA MOTORS CORP.
