Push Button Start System Does Not Operate: Notes

Description	When the push button start is pressed, the ignition cannot be switched to ACC or ON (engine off).

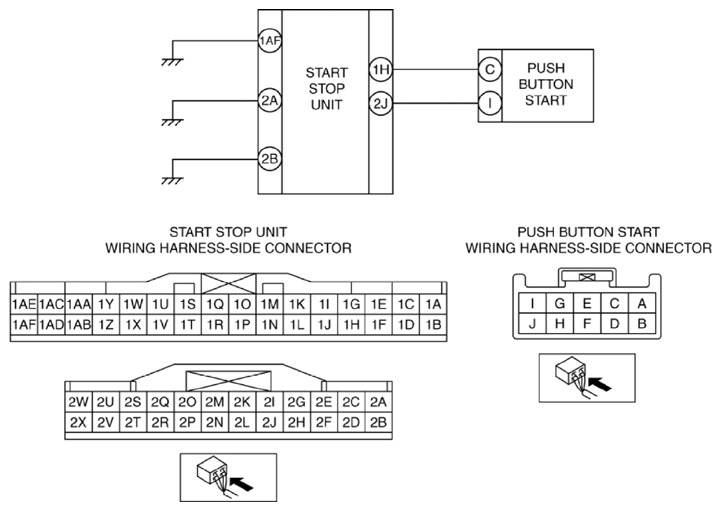

Possible Causes	Fuse malfunction Customer mis-operation or misunderstanding Open circuit in wiring harness between the following terminals: Start stop unit terminal 1H and push button start terminal C Start stop unit terminal 2J and push button start terminal I Start stop unit terminal 1AF and ground Start stop unit terminal 2A and ground Start stop unit terminal 2B and ground
