Net Installation Note

  1. Insert a precision flathead screwdriver in the position shown in the figure.

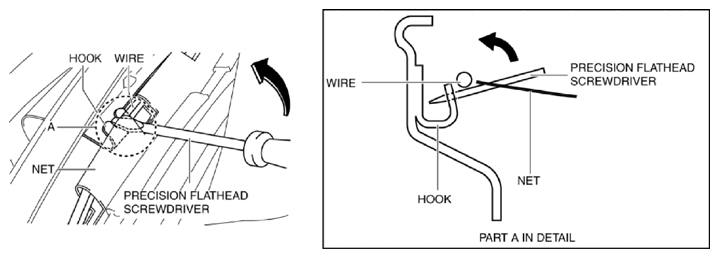

    Fig 1: Inserting Precision Flathead Screwdriver In Position
    G10954216Courtesy of MAZDA MOTORS CORP.
  2. Move the precision flathead screwdriver in the direction of the arrow shown in the figure and install the wire onto the hook.
