Seat Back Component Removal/Installation

WARNING:

Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

Disconnect the negative battery cable and wait for 1 min or more.(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Seat (See SEAT REMOVAL/INSTALLATION .)
2. Seat side cover (See SEAT SIDE COVER REMOVAL/INSTALLATION .)
3. Buckle (See BUCKLE REMOVAL/INSTALLATION .)
Disconnect the connectors.

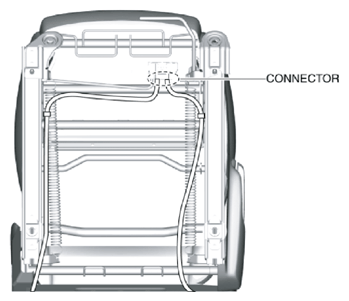

Fig 1: Identifying Seat Back Component Connector
Courtesy of MAZDA MOTORS CORP.
Pull out the wiring harness clip.
Remove the bolts.

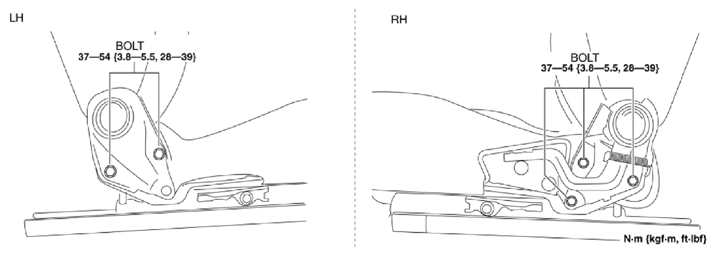

Fig 2: Identifying Seat Back Component Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the seat back component.
Install in the reverse order of removal.
