Door Quarter Glass Removal/Installation: Installation

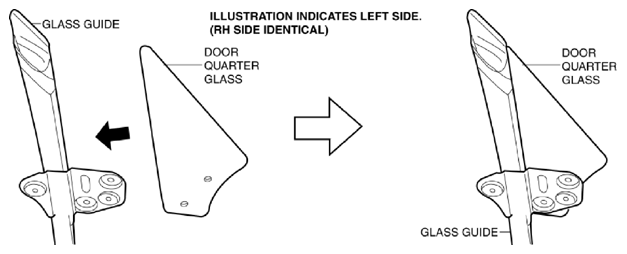

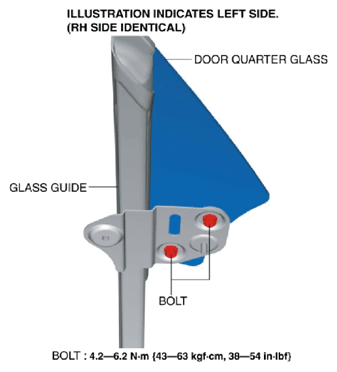

Move the door quarter glass in the direction of the arrow shown in the figure and press it into the glass guide.

Fig 1: Pressing Door Quarter Glass Into Glass Guide
Courtesy of MAZDA MOTORS CORP.

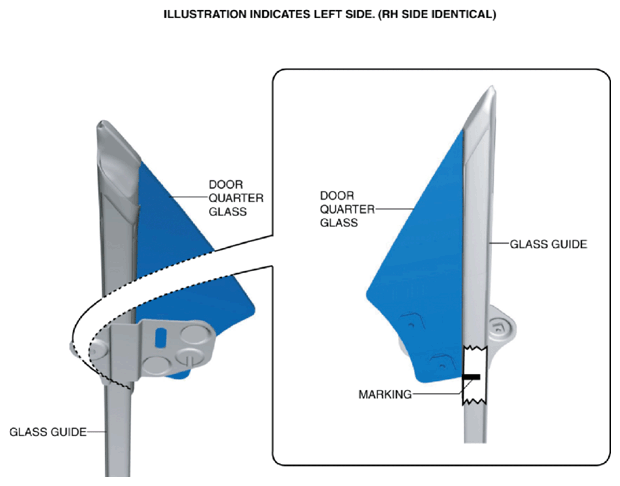

Align the door quarter glass lower end with the marking shown in the figure.

Fig 2: Identifying Marking On Glass Guide
Courtesy of MAZDA MOTORS CORP.

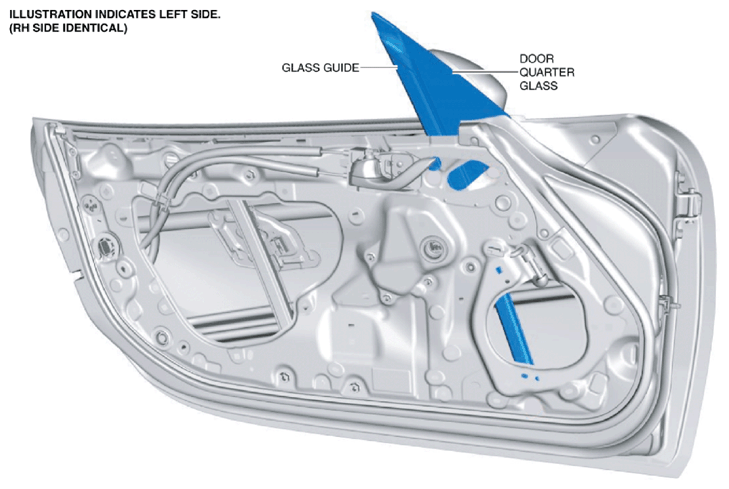

Install the bolts.

Fig 3: Identifying Glass Guide Bolts
Courtesy of MAZDA MOTORS CORP.
Insert the door quarter glass and the glass guide as a single unit into the door panel. (See GLASS GUIDE INSTALLATION NOTE .)

Fig 4: Identifying Door Quarter Glass Guide
Courtesy of MAZDA MOTORS CORP.

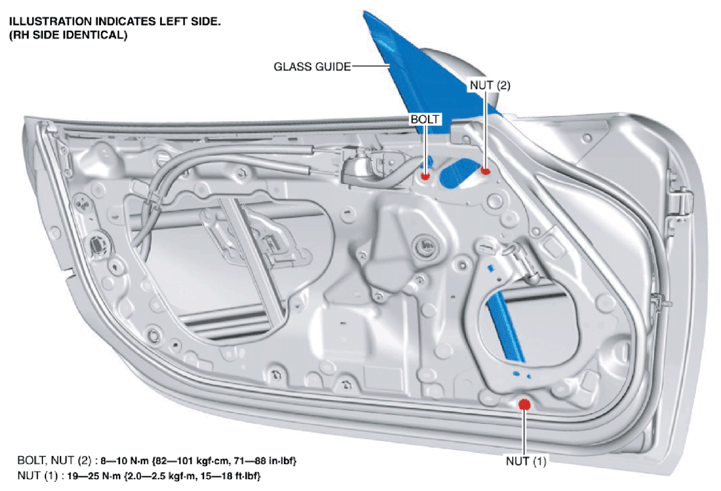

Install the bolt.

Fig 5: Identifying Glass Guide Nuts
Courtesy of MAZDA MOTORS CORP.
Install the nut (2).
Install the nut (1).

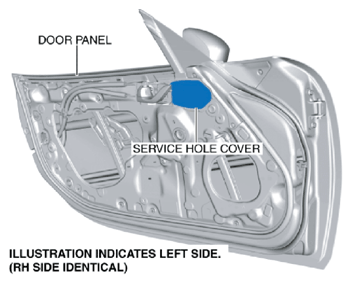

Install the service hole cover.

Fig 6: Identifying Door Panel Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION .)
2. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
3. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
4. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
