Inspection Using an Oscilloscope

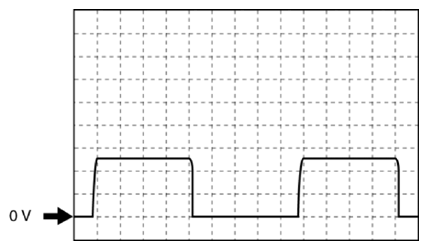

Fig 1: Power Window Oscilloscope Graph (Driver Side)

Courtesy of MAZDA MOTORS CORP.

• Power window main switch: 2D (+), 2F (+) ↔ ground (-)
• Power window motor (LH): B (+), F (+) ↔ ground (-)
• Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
