Clip, Brake Pipe Installation Note

  1. Install the clip as shown in the figure.

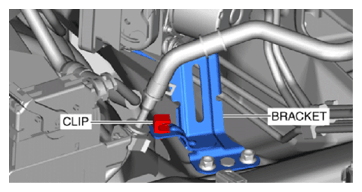

    Fig 1: Identifying Bracket And Clip
    G10952480Courtesy of MAZDA MOTORS CORP.
  2. Install the brake pipe to the clip.
