Battery Clamp Installation Note
Battery Clamp Installation Note
Install the battery clamp in the direction shown in the figure.

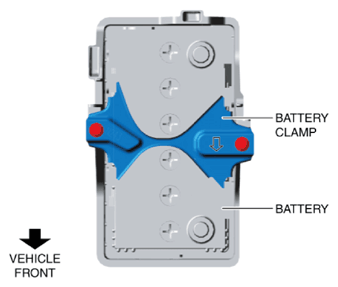

Fig 1: Identifying Battery And Clamp
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
