Negative Battery Cable Connection Note
Negative Battery Cable Connection Note
Connect the negative battery cable terminal in the direction shown in the figure.

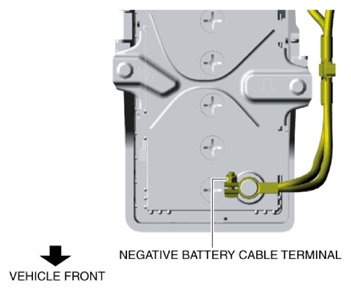

Fig 1: Identifying Negative Battery Cable Terminal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
