Charging System Location Index

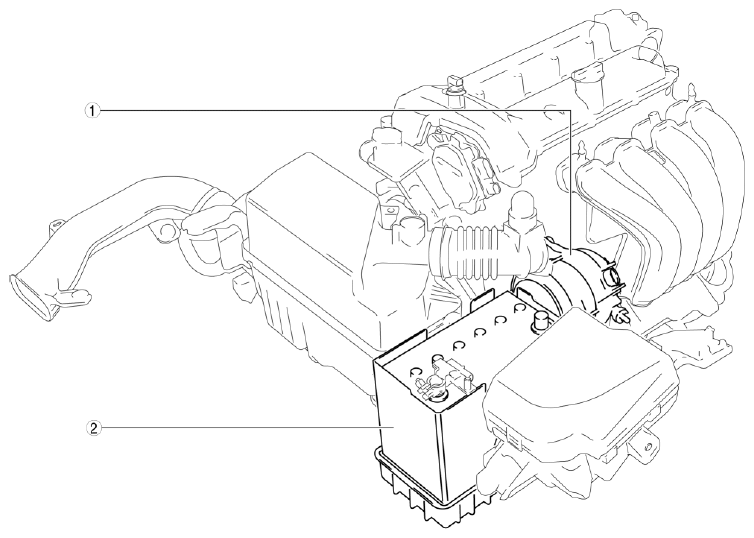

Fig 1: Generator And Battery

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See GENERATOR INSPECTION .) (See GENERATOR DISASSEMBLY/ASSEMBLY .)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
