Generator Removal Note

Disconnect the A/C compressor connector.

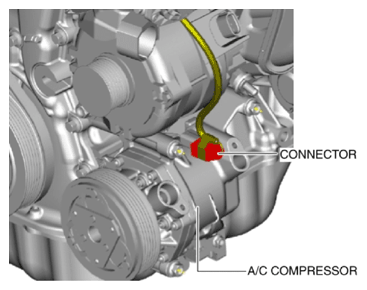

Fig 1: Identifying A/C Compressor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the generator upper bolt.
Remove the wiring harness bracket.
Remove the generator lower bolt.
Remove the generator.

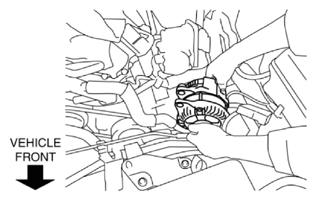

Fig 2: Removing Generator

Courtesy of MAZDA MOTORS CORP.
