Air Hose Installation Note

  1. Install the air hose as shown in the figure.

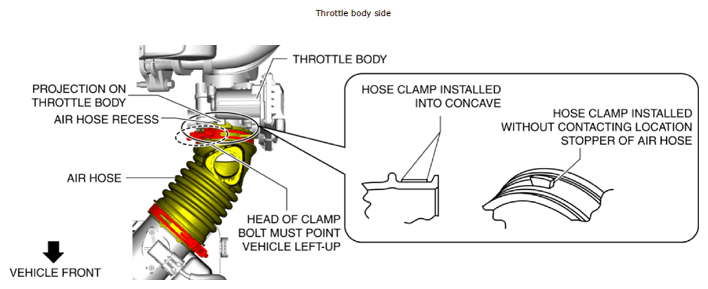

    Fig 1: Identifying Air Hose Installation Position (Throttle Body Side)
    G10951691Courtesy of MAZDA MOTORS CORP.

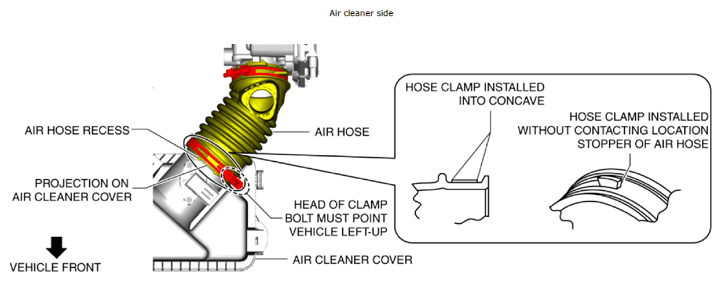

    Fig 2: Identifying Air Hose Installation Position (Air Cleaner Side)
    G10951692Courtesy of MAZDA MOTORS CORP.
