Joint Pipe Installation Note

  1. Install the joint pipe as shown in the figure.

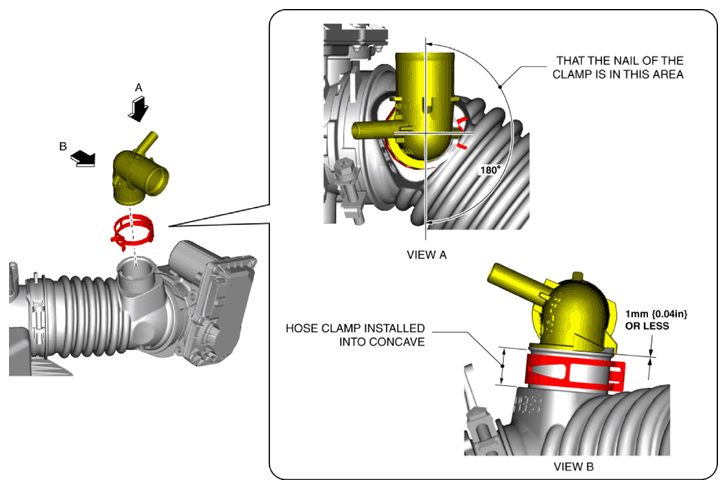

    Fig 1: Installing Joint Pipe
    G10951693Courtesy of MAZDA MOTORS CORP.
