Cooling fan control signal

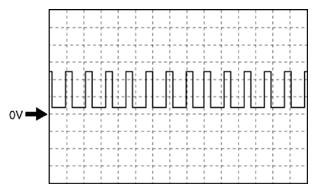

Fig 1: Cooling Fan Control Signal Oscilloscope Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2X(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up and no load)
