Intake CMP signal

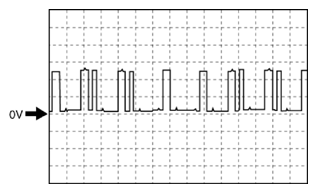

Fig 1: Intake CMP Signal Oscilloscope Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1Y(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up and no load)
