Fuel Pump Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

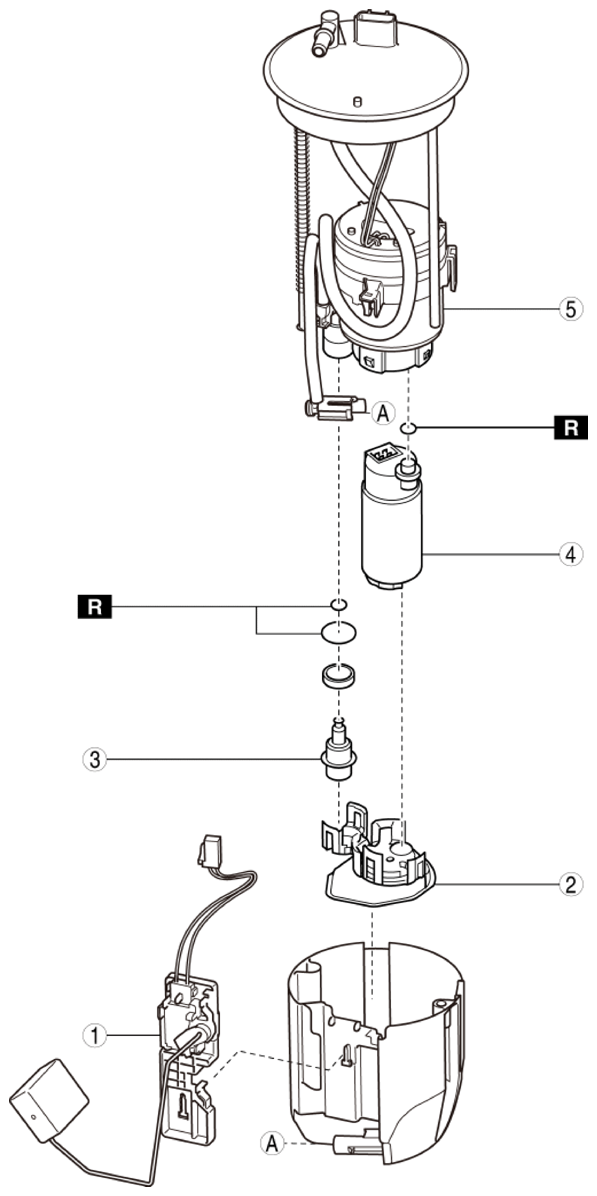

    Fig 1: Identifying Fuel Gauge Sender Unit, Fuel Filter, Pressure Regulator And Fuel Pump
    G10951746Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fuel gauge sender unit
    2 Fuel filter (low-pressure)
    3 Pressure regulator
    4 Fuel pump
    5 Fuel filter (high-pressure)
