Fuel Tank Removal/Installation
›
Joint hose installation note
Joint hose installation note
Install the joint hose as shown in the figure.

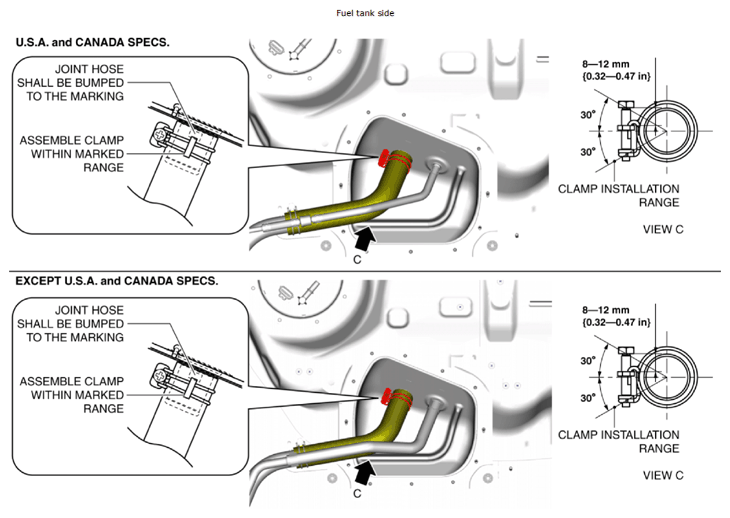

Fig 1: Joint Hose Clamp Installation Range (Fuel Tank Side)
Courtesy of MAZDA MOTORS CORP.

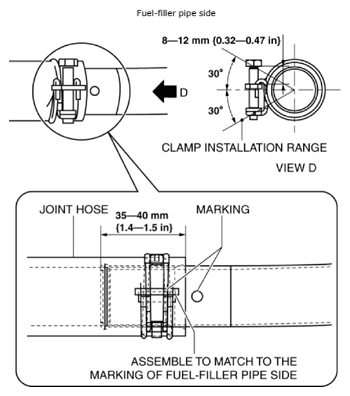

Fig 2: Joint Hose Clamp Installation Range (Fuel-Filler Pipe Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
