Pressure Control Valve Installation Note
Install the pressure control valve as shown in the figure.

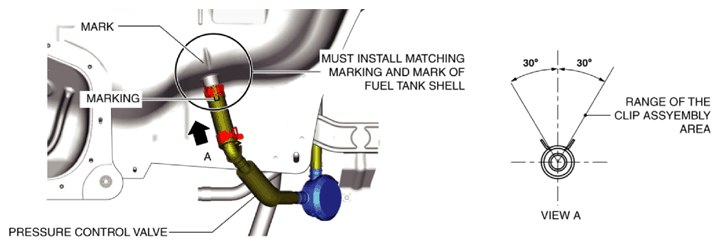

Fig 1: Identifying Pressure Control Valve And Fuel Tank Shell Marking
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
