Fuel-Filler Pipe Removal/Installation
›
Joint Hose Installation Note
Joint Hose Installation Note
Install the joint hose as shown in the figure.

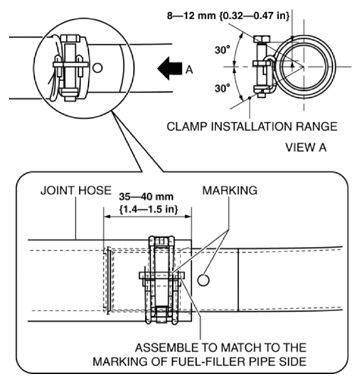

Fig 1: Joint Hose Clamp Installation Range
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
