Transmission Fluid Temperature (TFT) Sensor Removal/Installation

WARNING:
  • A hot transmission and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing ATF.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT .)
    CAUTION:
    • Do not damage the installation surface of the transmission case and the oil pan.
    • Do not deform the oil pan.
  3. Remove the oil pan and gasket.
  4. Remove the oil strainer from the control valve body component.

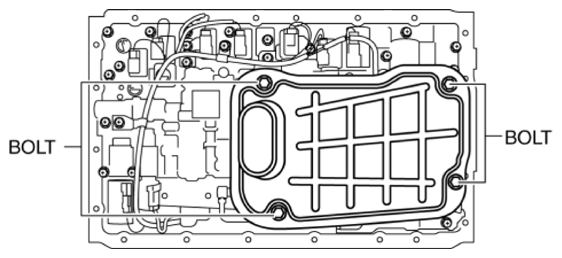

    Fig 1: Removing Oil Strainer From Control Valve Body Component
    G10952788Courtesy of MAZDA MOTORS CORP.
  5. Remove the O-ring from the oil strainer.
  6. Disconnect the connectors from the solenoids.
    Fig 2: Disconnecting Connectors From Solenoids
    G10952789Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the coupler component from the clamps.
  8. Remove the lock plate from the control valve body component.

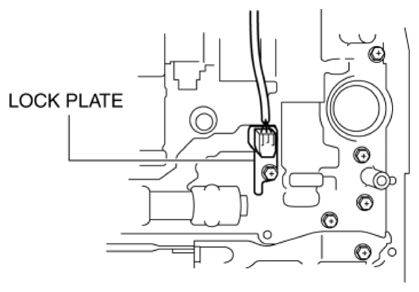

    Fig 3: Removing Lock Plate From Control Valve Body Component
    G10952790Courtesy of MAZDA MOTORS CORP.
  9. Pull the TFT sensor from the control valve body component.
  10. Remove the coupler component mounting bolt from the transmission case.
  11. Remove the coupler component from the transmission case.
  12. Remove the O-ring from the coupler component.
  13. Install a new O-ring to the coupler component.
  14. Tighten the coupler component mounting bolt to the transmission case.

    Tightening torque

    • 3.9-6.9 N.m {40-49 kgf.cm, 35-42 in.lbf}
  15. Install the TFT sensor and the lock plate with the bolt to the control valve body component.
    Fig 4: Installing TFT Sensor And Lock Plate With Bolt To Control Valve Body Component
    G10952791Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    • 8.0-12.0 N.m {82-122 kgf.cm, 26-42 in.lbf}
  16. Connect the coupler component to the clamps.

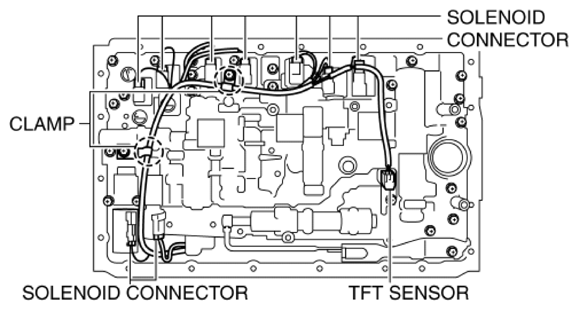

    Fig 5: Connecting Connectors To Solenoids
    G10952792Courtesy of MAZDA MOTORS CORP.

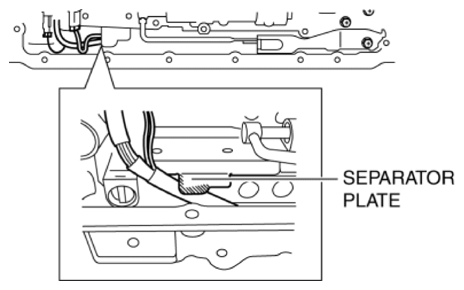

    Fig 6: Identifying Separator Plate
    G10952793Courtesy of MAZDA MOTORS CORP.
  17. Connect the connectors to the solenoids.
  18. Coat a new O-ring with ATF and install it to the oil strainer.
  19. Install the oil strainer to the control valve body component with the bolts.
    Fig 7: Installing Oil Strainer To Control Valve Body Component With Bolts
    G10952794Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Be careful not to allow foreign matter to penetrate the interior of the transmission.
  20. Clean the contact surface of the oil pan and transmission case.

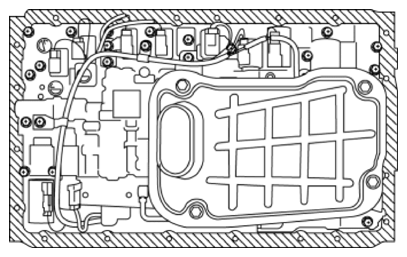

    Fig 8: Identifying Oil Pan Contact Surface And Transmission Case
    G10952795Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not damage the fitting surface of the transmission case and the oil pan.
    • Do not deform the oil pan.
  21. Install a new oil pan gasket and the oil pan to the transmission case.

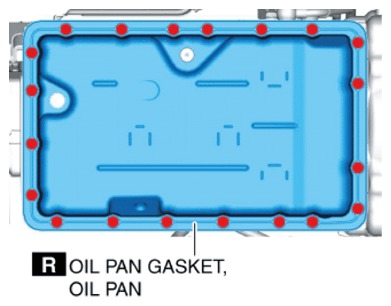

    Fig 9: Installing Oil Pan Gasket And Oil Pan To Transmission Case
    G10952796Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Be careful not to tighten the bolts excessively because the oil pan gasket is made of cork.
  22. Tighten the oil pan installation bolt.

    Tightening torque

    • 6.0-7.9 N.m {62-80 kgf.cm, 54-69 in.lbf}
  23. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  24. Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .)
