Advanced Keyless Entry System Does Not Operate: Notes

Description	Door or fuel-filler lid cannot be locked/unlocked using request switch Trunk lid does not open even if trunk lid opener switch is pressed Door or fuel-filler lid cannot be locked/unlocked using remote transmitter Trunk lid does not open even if using remote transmitter

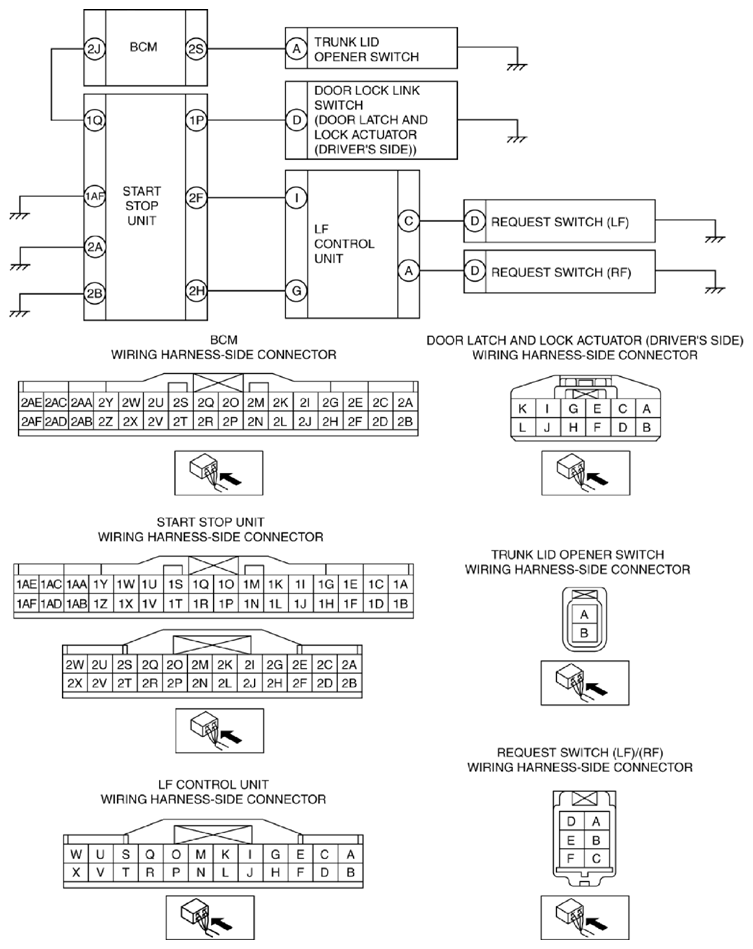

Possible Causes	Trunk lid opener switch malfunction Trunk lid release actuator malfunction Trunk lid latch switch malfunction Open circuit in wiring harness between the following terminals: BCM terminal 2S and trunk lid opener switch terminal A LF control unit terminal A and request switch (RF) terminal D LF control unit terminal C and request switch (LF) terminal D Start stop unit terminal 1P and door lock link switch (driver's side) terminal D Start stop unit terminal 1AF and ground Start stop unit terminal 2A and ground Start stop unit terminal 2B and ground Short to ground in wiring harness between start stop unit terminal 1P and door lock link switch (driver's side) terminal D Connector poor contact or terminal damage Customer's mis-operation or misunderstanding
