Bolt Installation Note

  1. Install the bolts in the order shown in the figure.

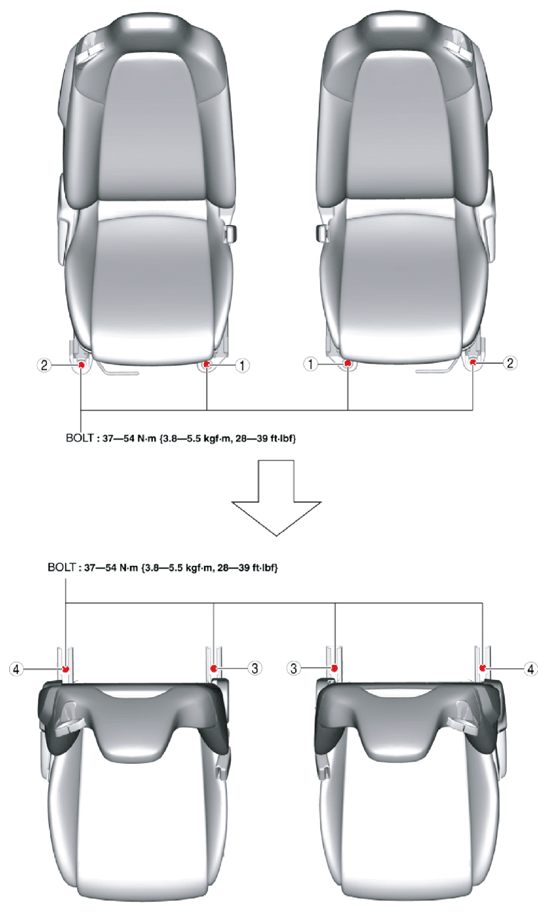

    Fig 1: Identifying Seat Bolt With Torque Specifications (Passenger Seat)
    G10954221Courtesy of MAZDA MOTORS CORP.
