DSC Off Switch Inspection

NOTE:

• The DSC OFF switch is integrated with the cluster switch.
• If the DSC OFF switch is replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

1. Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
2. Measure the resistance between cluster switches B and C under the following conditions:

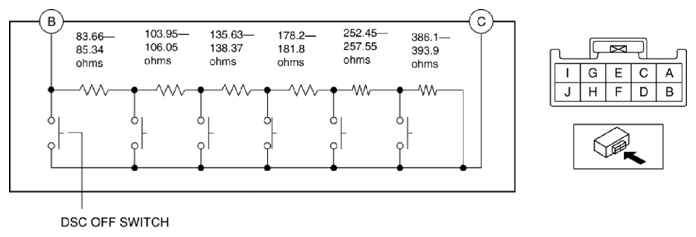

Fig 1: DSC OFF Switch Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

• If not within the specification, replace the cluster switch.
• Resistance with DSC OFF switch pressed and held (standard)
  • 0 ohm
• Resistance with any switches not pressed (standard)
  • 1, 139.99-1, 163.01 ohms
