Engine Performance
›
System
›
Symptom Troubleshooting - Engine
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

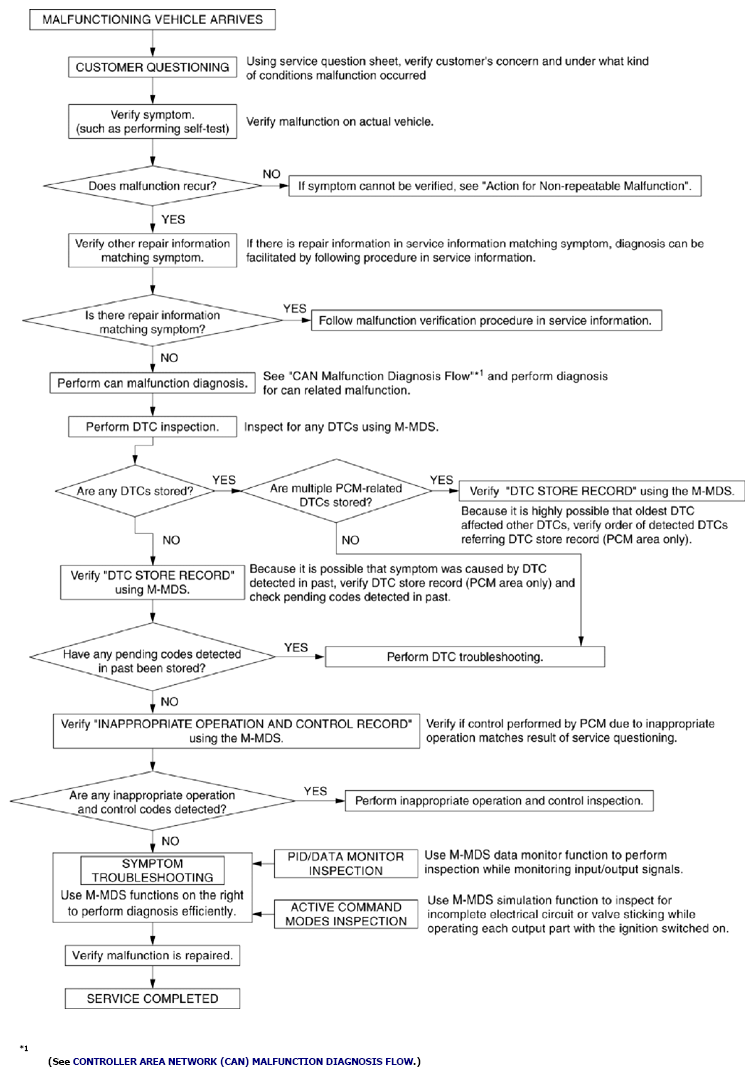

Fig 1: SKYACTIV-G 2.0 - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
