Troubleshooting Procedure

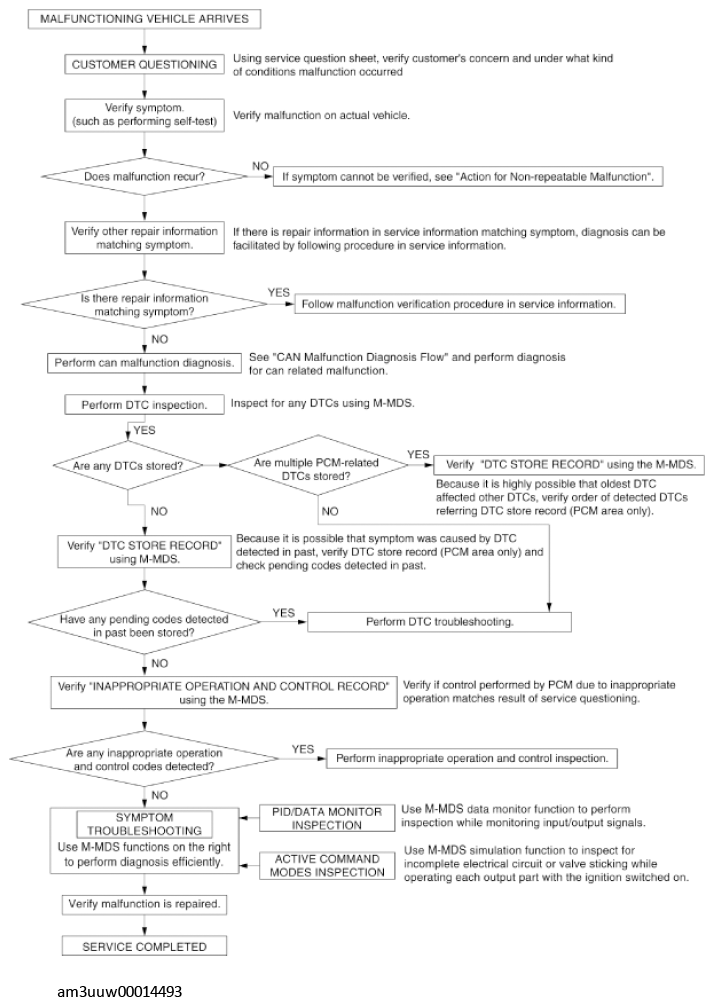

Fig 1: Foreword - PCM (Skyactiv-G 2.0, Skyactiv-G 2.5) Troubleshooting Procedure Flowchart
G11550392Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
