Rear Buckle Removal/Installation: Notes

Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
Remove the bolts.

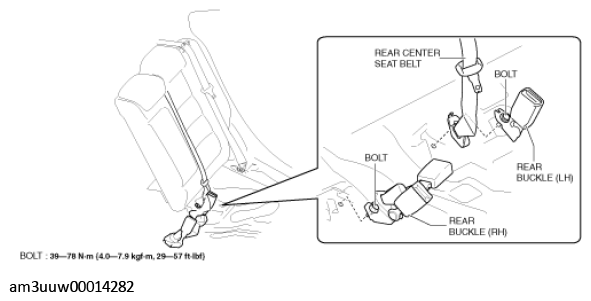

Fig 1: Removing Rear Buckle
Courtesy of MAZDA MOTORS CORP.
Remove the rear buckle (RH) and rear buckle (LH).
Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE .)
