Accessory Socket Removal/Installation: Front

Disconnect the negative battery cable.
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

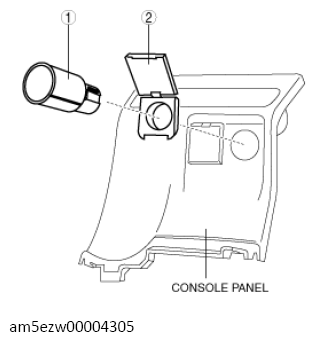

Remove in the order indicated in the table.

G13728598

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Socket (See SOCKET REMOVAL NOTE .)
2	Cap (See CAP REMOVAL NOTE .)

Install in the reverse order of removal.
