Combination Switch Disassembly/Assembly
Combination Switch Disassembly/Assembly

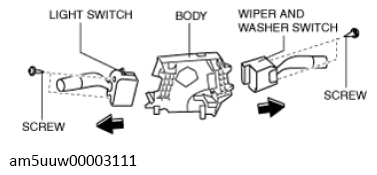

Remove the screws shown in the figures, then pull the light switch, and the wiper and washer switch in the direction of the arrow respectively to remove them.
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
