Front Combination Light Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
NOTE:
  • Fogging or condensation on the inside of the front combination light may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the front combination lights rises after illuminating the headlights and a period of time has elapsed.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

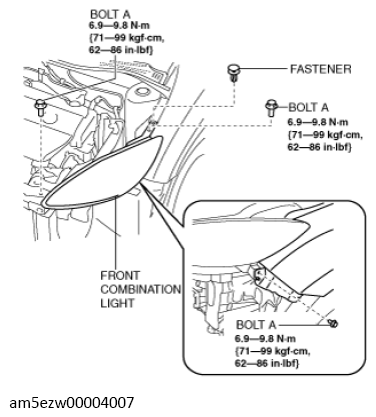

  3. Remove bolts A.
    Fig 1: Front Combination Light Bolts A With Torque Specification
    G13728448Courtesy of MAZDA MOTORS CORP.
  4. Remove the fastener.

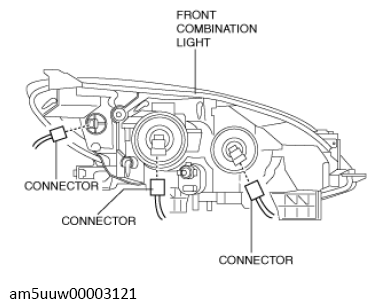

  5. Disconnect the connectors.
    G13728449Courtesy of MAZDA MOTORS CORP.

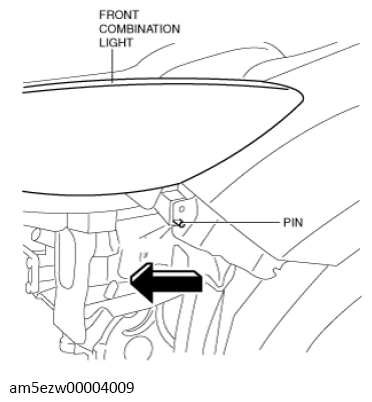

  6. Pull the front combination light in the direction of the arrow shown in the figure and remove the pin from the body.
    G13728450Courtesy of MAZDA MOTORS CORP.
  7. Remove the front combination light.

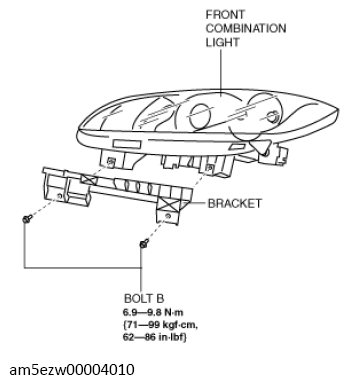

  8. Remove bolts B.
    Fig 2: Front Combination Light, Bracket Bolts B With Torque Specification
    G13728451Courtesy of MAZDA MOTORS CORP.
  9. Remove the bracket from the front combination light.
  10. Install in the reverse order of removal.
  11. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
