Map Light Inspection
- Disconnect the negative battery cable.
- Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)

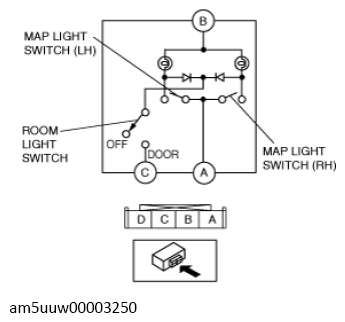

- Verify that the continuity between the map light terminals is as indicated in the table.
- If not as indicated in the table, replace the map light.
- Apply battery positive voltage to map light terminal B, and connect terminal C to ground.
- Switch the interior light switch to the DOOR position and verify that the map light illuminates.
- If the light does not illuminate, replace the map light.
